What do the control panel LCD settings on a RYOBI 80V Lithium Zero Turn Ride-On Mower do?

Last update: 15/03/2023, 13:29

  • There is an LCD Control Panel on your RYOBI 80V Lithium Zero Turn Ride-On Mower, with a series of LCD settings, including the Main Dashboard, Battery Monitoring, Blade Check, Battery Under Temperature Range, Battery Over Temperature Range, and Low Battery.
  • To understand what each setting means, refer to the following guide:



                                                              Screen                                                  LCD Settings
Main Dashboard RYOBI Lithium Zero Turn Ride-on Mower Main Dashboard 1. Neutral indicator
2. Park indicator
3. Light indicator
4. Bluetooth indicator
5. Blade speed indicator
6. Blade speed
7. BLUETOOTH
8. Menu
9. Headlights on/off
10. Drive speed
11. Screen tabs
12. Battery level
13. Drive speed indicator

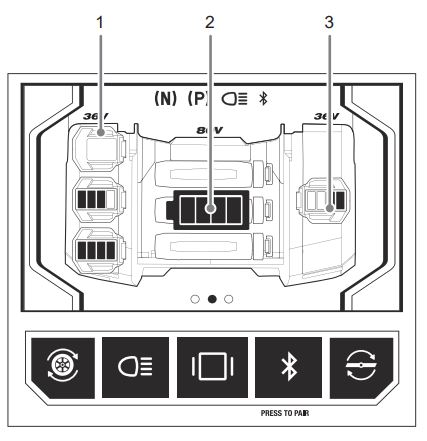

Battery Monitoring RYOBI Lithium Zero Turn Ride-on Mower LCD Battery Monitoring 1. Empty battery bay / dead battery
2. 80V battery indicator
3. 36V battery indicator

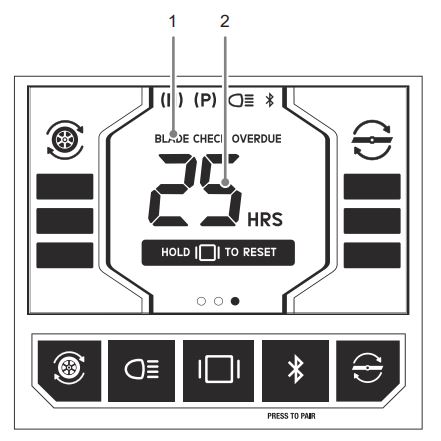

Blade Check RYOBI Lithium Zero Turn Ride-on Mower LCD Blade Check 1. Blade check indicator
2. Hours remaining before blade check replacement

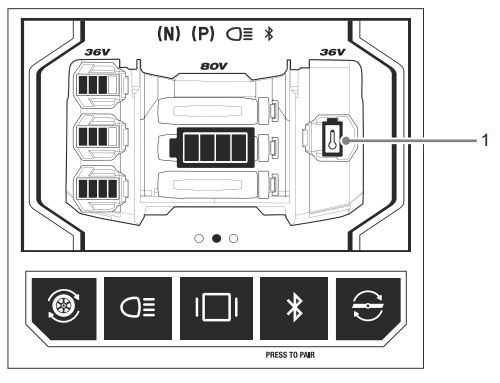

Battery Under Temperature Range RYOBI Lithium Zero Turn Ride-on Mower LCD Battery Under Temperatur eRange 1. Battery under temperature
Battery is too cold. Allow the battery to warm up before resuming operation.

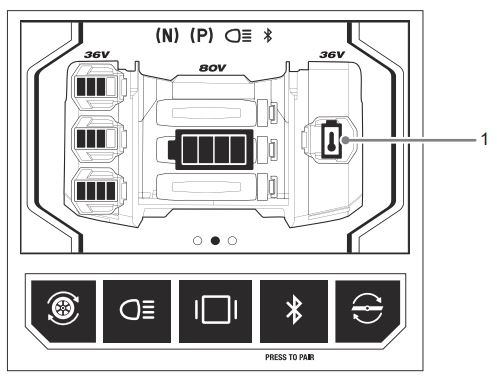

Battery Over Temperature Range RYOBI Lithium Zero Turn Ride-on Mower LCD Battery Over Temperature Range 1. Battery over temperature
The battery is too hot. Allow the battery to cool down before resuming operation.

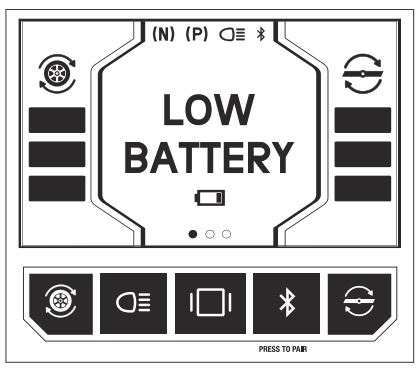

Low Battery RYOBI Lithium Zero Turn Ride-on Mower LCD Low Battery The battery pack capacity is low. The blades will automatically turn off to conserve power and allow the user to return to the charging station. The product will turn off soon.
