How to lock & unlock a RYOBI 210MM Compound Mitre Saw's handle

Last update: 13/09/2024, 14:20

Applicable Models

EMS1221RG-0


To unlock the saw handle:
Step Action

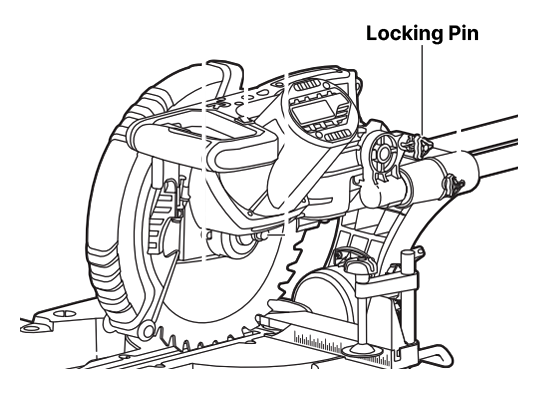

Note The RYOBI 1200W 210MM Compound Mitre Saw handle is locked down with a pin located on the right.
1 To unlock the handle, pull down the handle and hold it there.
2 Pull the locking pin all the way out.
3 Slowly bring up the saw handle and then check it operates freely up and down before use.
To lock the saw handle:
Step Action
1 Pull down the handle and hold it there.
2 Push the locking pin all the way in.
3 Slowly release the handle.
